Beschreibung
- Traumlautsprecher ! Originalverpackt, ungespielt !
Traumhafte Highendlautsprecher, Made in U.K !
Testbericht:
https://www.lowbeats.de/test-tannoy-cheviot-mit-12-zoll-dual-concentric/
- Heritage 2 way floor-standing loudspeaker based on famous HPD design for large sized rooms
- Cabinet design and components provide authentic reproduction of original HPD loudspeaker system
- Dual Concentric driver based on famous HPD 1974 pedigree technology provides class-leading coherence and point-source imaging
- Sophisticated crossover network with 2 separate channels perfectly complements Dual Concentric driver for truly natural sound
- Front mounted control panel houses 2 band energy control with boost and attenuation compensation for room design and tailoring to personal preference
- Highly efficient 12" driver with 500-Watt power handling delivers breathtaking dynamics and realism
- Wide frequency range with fast transient response provides exceptionally natural audio reproduction
- Heavy duty 24 carat multi-layer gold plated WBT* bi-wireable binding posts for ultimate signal integrity
- 8 mm floor coupling spikes provide stability and dissipate unwanted energy
- Fifth binding post provides grounding to reduce radio frequency interference and improve midrange clarity
- High density cabinet provides extreme rigidity to control low frequency performance
- Extensive bracing incorporates DMT (Differential Materials Technology) for coupling drivers to cabinets
- TANNOY
- 90 years of British sound heritage and innovation - 10-Year Warranty Program*
- Designed and manufactured in the U.K.

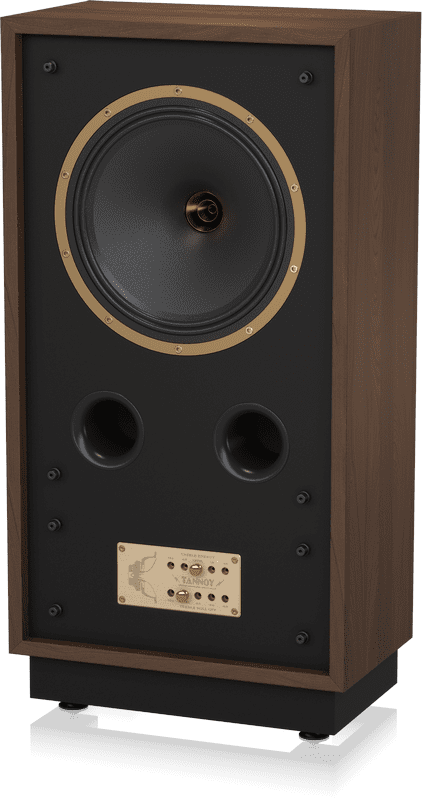

LEGACY CHEVIOT
Music is an art form that needs to be experienced in all its beauty, detail, and nuance without the colouration that can instantly detract from its purest essence. A truly great loudspeaker design enables the speaker system to remove itself from the soundscape and present the music in a manner that envelopes you in the same way as a live performance.
In the 1970s TANNOY created a range of monitors that forever changed the way studio engineers and audiophiles alike chose to experience high quality audio. The TANNOY HPD Series quickly became some of the most beloved Hi-Fi loudspeakers of all time.
More than just a homage to its predecessor, the Legacy Series CHEVIOT Floor-Standing 12" Dual Concentric Hi Fi Loudspeaker further elevates the TANNOY HPD heritage of outstandingly transparent performance with the implementation of new, upscaled drivers and components – technology that was unavailable at the time. Simply put, CHEVIOT delivers legendary HPD performance to a new generation of music aficionados.
Die Daten:
Technische Daten:
Frequenzgang 38 Hz - 30 kHz ±6 dB
Empfohlene Verstärkerleistung 20 - 250 W
Leistungsaufnahme (IEC) 125 W Dauerbetrieb, 500 W Spitze
Empfindlichkeit 91 dB (1 W @ 1 m)
Impedanz 8 Ω
Komponenten
Niederfrequenz Dual Concentric 1 x 300 mm Papierzellstoffkegel
mit zweifach rollimprägnierter Gewebeeinfassung.
52 mm kantengewickelte Schwingspule
Hochfrequenz Dual Konzentrisch 1 x 33 mm Aluminium/Magnesium
Legierungskuppel mit kantengewickelter Schwingspule
Frequenzweiche
Frequenz 1,2 kHz
Typ Zweiadrig, fest verdrahtet passiv, verlustarm
Tiefpass 2. Ordnung, Hochpass 1. Ordnung
Einstellung ±3 dB über 1 kHz bis 30 kHz Regal,
2 dB bis -6 dB pro Oktave über 5 kHz bis 5 kHz.
30 kHz Steigung
Gehäuse
Typ Doppelter verteilter Port
Volumen 58 Liter
Steckverbinder 5 x 4 mm 24ct WBT-Klemmanschlüsse
Abmessungen (H x B x T) 860 x 448 x 260 mm
Nettogewicht 29 kg
Konstruktion 19 mm Spanplatte mit Sperrholzplatte
Innenverstrebungen - stark gedämpft
Ausführung Nussbaumfurnier und hohe Akustik
transparente Nylon-Grillabdeckung
Zubehörpaket (inklusive)
Bi-Wire-Brückenverbinder
Prestigeholzwachs
Teppichschützer
Verstellbare Füße
