Audio Technica AT-OC9/III MC Tonabnehmer, Tonabnehmer, hifiteam, home entertainment for you

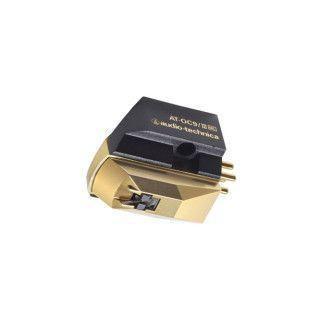

Audio Technica AT-OC9/III MC Tonabnehmer

Audiotechnica


€499.00 €549.00


Klicken Sie hier, wenn Sie informiert werden möchten, sobald dieser Artikel verfügbar ist.



Audio-Technica’s AT-OC9/III MicroCoil™ Cartridge features a special line contact stylus embedded into a low-profile solid boron cantilever, ensuring the music signals read by the tip of the stylus are transmitted reliably to the coils. The cartridge’s “VC mold” design ensures stability and rigidity while the dual moving coil offers excellent stereo separation and improved frequency response for long-lasting performance. The use of PCOCC wire (Pure Copper by Ohno Continuous Casting), a special copper with virtually no transverse crystal barriers to impede signal transmission, perfects the performance of the advanced dual coil design.

Frequency Response 15-50,000 Hz
Channel Separation 30 dB (at 1 kHz)
Vertical Tracking Force 1.88-2.2 grams (standard: 2.0 grams)
Recommended Load Impedance Min. 100 ohms (when head amplifier is connected)
Output 0.4 mV (at 1 kHz, 5 cm/sec)
Channel Balance 0.5 dB (at 1 kHz)
Stylus Shape Line contact
Cantilever 0.26 mm diameter solid boron
Mount Half-inch



    • Flagship model with extremely high-quality sound

    • Builds on the characteristics of the critically acclaimed AT-OC9ML/II

    • Special line contact stylus and solid boron cantilever with a 0.26 mm diameter

    • Neodymium magnet and permendur yoke significantly increase magnetic energy

    • PCOCC used for coils and terminal pins

    • Dual moving coil with high separation and wide response

    • VC mold for minimizing unnecessary vibration

  • Rugged body dedicated to achieving a design with increased rigidity
