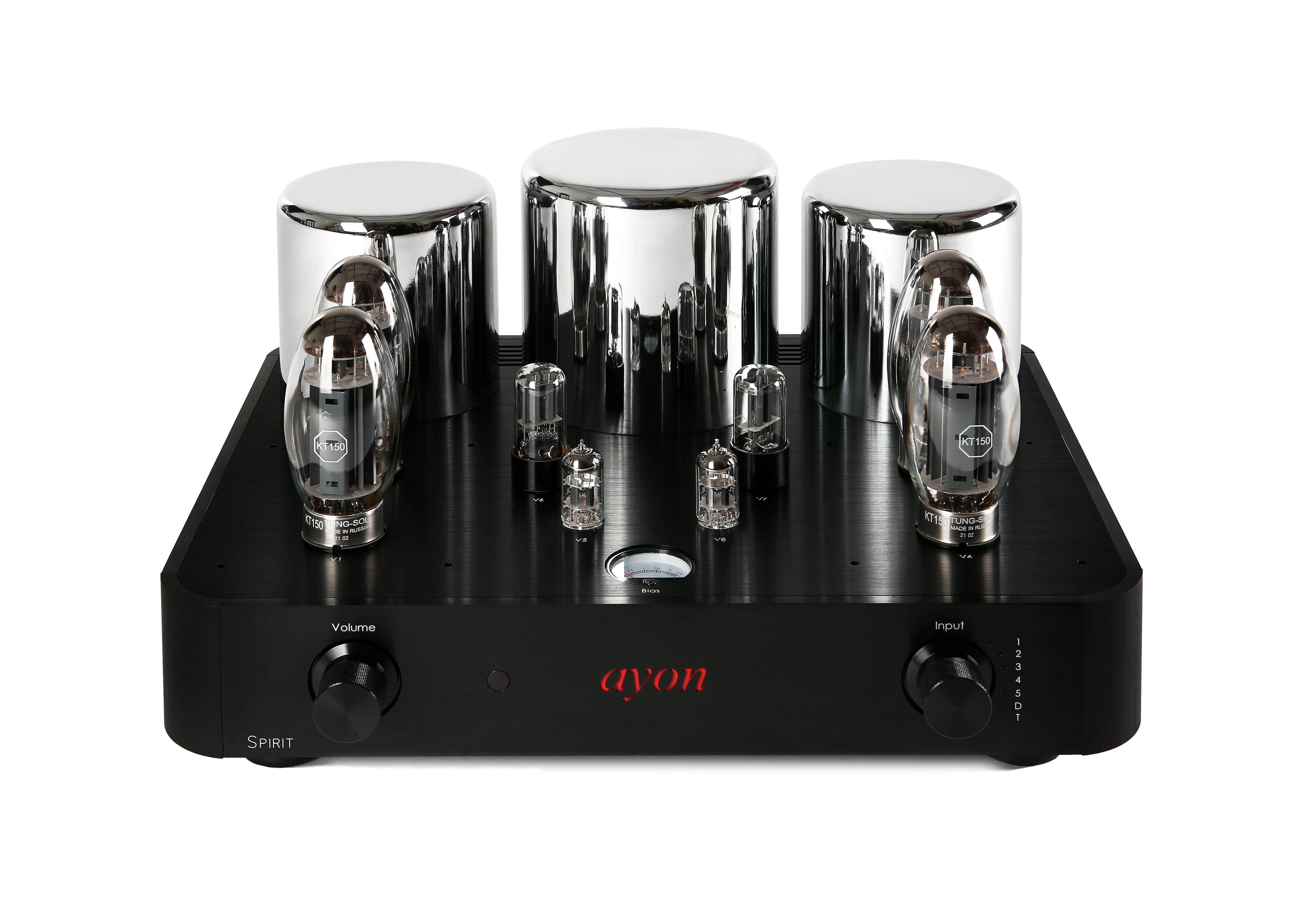

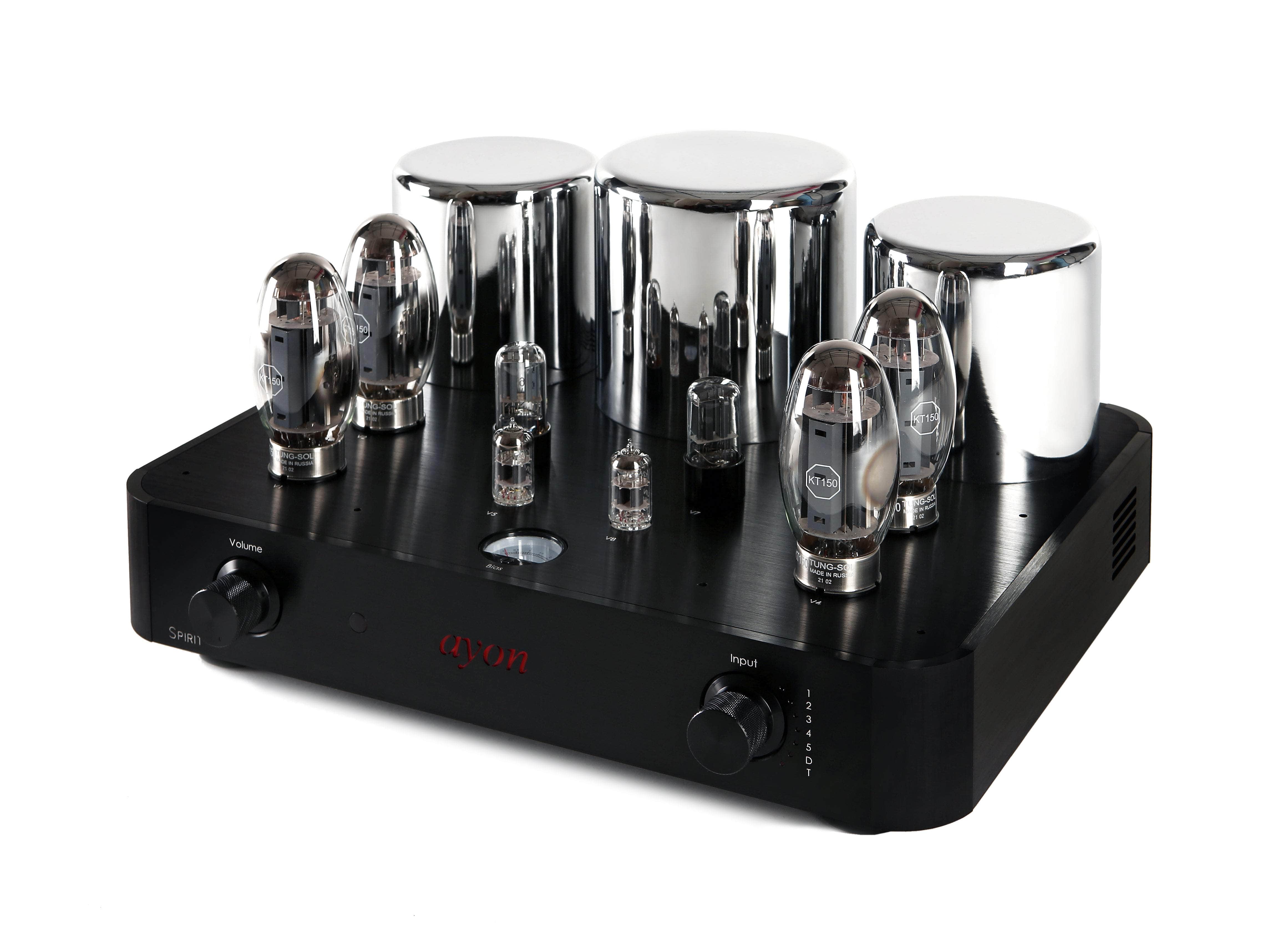

AYON SPIRIT V KT-150 2024 Demogerät

Einsparung 6%

Preis:
Sonderpreis€ 7.950,00 Normalpreis€ 8.495,00
 Weitere Bezahlmöglichkeiten

GPSR Information

Allgemeine Informationen

CE-Kennzeichnung: Ja

Name: Ayon Audio

Adresse: Hart 18, A 8101-Gratkorn

E-Mail: ayon@ayonaudio.com

Webseite: ayonaudio.com

Europäischer Hersteller: Ja

Beschreibung

Neueste Version zu erkennen an der Bias Anzeige nittig !Weltklasse made in Austria, Röhre mit neuester Technologie und FB, neuestes Modell:



NEUE Version mit BIAS Anzeigeinstrument uvm..!

Die Daten:

2x70W Pentode or 2x45W Triode -switchable, 2x12AX7,


2x 6SN7, 0dB NFB, 3 x Line In-RCA, 1 x Line In-XLR, 1xDirect In, 1 x Pre-out, RC; Auto-Fixed-Bias system & Tube test program; Analog Bias meter !


Power Tubes:
4 x KT170 Tung-sol

Eine unserer REFERENZEN, UM ES ZU GLAUBEN, MUSS MAN IHN HÖREN..........

DAS IST AUCH DIE WAHL von STS Gert STEINBÄCKER, verwendet diese in seiner  privaten Anlage, Ayon Lautsprecher auch im Tonstudio !

Ausführlicher Testbericht: (Vorgänger)

http://soundrebels.com/artykuly/recenzje/item/247-ayon-spirit-3-kt150-english-ver


Einige Zitate: „Dieser Vollverstärker ist nicht nur leistungsfähig, durchweg präzise und klanglich definitiv extrem gut ausbalanciert, er liefert auch so viel Farbe und Differenziertheit, dass man ins Schwärmen geraten könnte.

Die wuchtige Tiefton-Schlagkraft ist dann unvermittelt da, wenn sie gebraucht wird. Dem Boliden deshalb sogar eine gewisse Zartheit und dennoch unbeschränkte Dynamik zu bescheinigen, fällt kinderleicht. Besser kann man es eigentlich nicht machen. TRAUMHAFT ! „
Bewertung: „Leistungsfähigkeit, herausragender, betörender Klang und jede Menge Finessen, die dem Nutzer alle Röhrensorgen abnehmen. Ein toller Röhrenverstärker auf höchstem Niveau – genau so, wie man sich das vorstellt. Ohne Zweifel ein HIGHLIGHT!“
-Preis-Leistung: überragend-

Ausgezeichnet mit dem Stereoplay Highlight l

Full-featured pure class-A tube stereo integrated amp or pure power amplifier
Switchable between pentode and triode mode
Ideal also for more difficult loudspeaker loads



Vacuum Tubes
The choice of signal and power tubes have a significant influence on the sound and hence on the inspiration and joy of listening. This is not only the decision between good and bad tubes but finally the interaction of the different types of tubes and their combination that are used in the various Ayon amplifiers.

Signal Path
We believe that the simplest circuits work best together with the shortest signal path. The shorter the signal path is, the less possibility of sonic degradation from various sources, including the wire itself. Even on the circuit boards, the copper traces are kept to a very minimum length. The completely redesigned circuit board provides a more straightforward and direct approach to the signal paths.



  • Logical sequenced soft-start power up for extended tube life
  • Power tube and electronic protection circuit system
  • 0dB negative feedback (of any kind )
  • Ultra short signal path
  • Simplest direct circuit path for purest musical sound and high reliability
  • No solid state devices in the signal path
  • High current and low impedance design that operates tubes in the best areas their curves
  • Minimal discrete wiring for optimum signal propagation
  • Automatic and manual bias adjustment
  • No followers or buffers in the signal path
  • High quality parts throughout
  • Selector switch engages relays located near RCA jacks to switch all inputs
  • Low noise –insulated power transformers
  • Power transformer is encased, excellent damped and RFI/EMI shielded
  • Innovative power supply provides a high speed energy delivery on transients
  • Choke filtered power supply for driver stage and KT150 power amp section
  • Separate and isolated power supplies over each stage of amplification
  • High current filament-regulator for pre and driver tubes
  • Regulated DC filament supplies with soft start
  • AC power line filter to avoid noise and hash from entering into the unit
  • High capacitance energy storage.
  • Current in-rush limiting
  • Auto sequencing - Power on cycle completes in 1 minute

Output Transformer
The super-wide bandwidth output transformer’s major strength is that it can deliver the current in the bass, while at the same time maintaining the speed in the high frequencies, dramatically improving the square wave response of the amplifier. The effect is a much more natural and relaxed sound with much better clarity, resolution and fluidity.



  • Super-wide bandwidth high performance output transformer
  • High efficiency with low insertion loss for optimal current and voltage transfer
  • Multiple tight layering and coupling for extended frequency response
  • Output transformers are sealed with an anti-resonance compound material



  • Selected, premium quality passive components used in all applications
  • High speed & high quality audiophile grade coupling capacitors
  • Special tube sockets with beryllium- copper spring pins, custom made by Ayon
  • WBT - NextGen – speaker binding posts
  • High quality – RCA input jack
  • Neutrik/Swiss - XLR chassis connectors
  • Special isolated - internal wiring
  • Silver-copper matrix - internal signal cable
  • Gold-plated industrial grade PCB
  • All wiring to the circuit boards is done with the use of special pluggable pin- conne
  • Amplifier Ayon Spirit V
    Class of Operation Triode* or Pentode mode, Class-A*
    Tube Complement KT150 or KT170
    Load Impedance 4 & 8 Ohms
    Bandwidth 10Hz – 60kHz / -3dB
    Output Power-Pentode mode 2 x 65 W
    Output Power-Triode mode 2 x 40W
    Input sensitivity for full power 500mV
    Input Impedance at 1 kHz 100 KΩ
    NFB 0dB
    Volume Control Alps Potentiometer
    Remote Control Yes
    Inputs 3x Line In, 1 x XLR In, 1 x Direct In
    Output 1 x Pre-out
    Conversion rate for USB-DAC (option) Up to 384kHz / 24 bit & DSD256
    Dimensions (WxDxH) cm 48x37x25 cm
    Weight 33 kg
    ctors.

Achtung: Versand nur auf Palette, dauert ca. 7 Tage...
