Beschreibung
6 Monate jung, sehr guter Zustand. 1 Jahr Gewährleistung, inkl. FB und OVP !
Neuwertig.

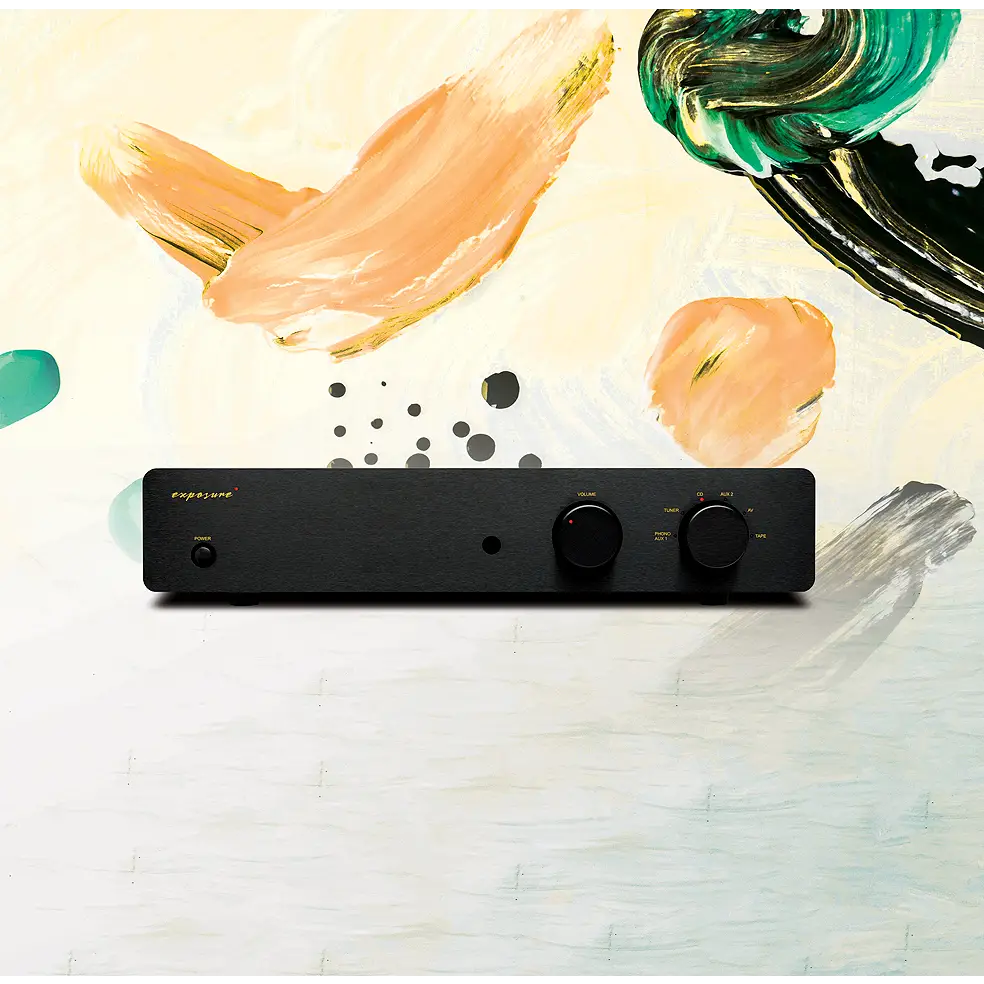

Der Exposure 2510 ist das Upgrade, auf das viele HiFi-Fans gewartet haben. Auf Basis der beliebten 2010-Serie wurde dieser neue Vollverstärker entwickelt.
Er bietet 75 Watt Ausgangsleistung je Kanal, sehr guten MM-Phonoeingang und 5 Cinch-Eingänge, Tape-Out und Pre-Out. Dank des Pre-Out (Cinch-Ausgang mit variabler Lautstärke) kann zusätzlich eine Exposure Endstufe angeschlossen werden, um Bi-Amping-Betrieb zu fahren.

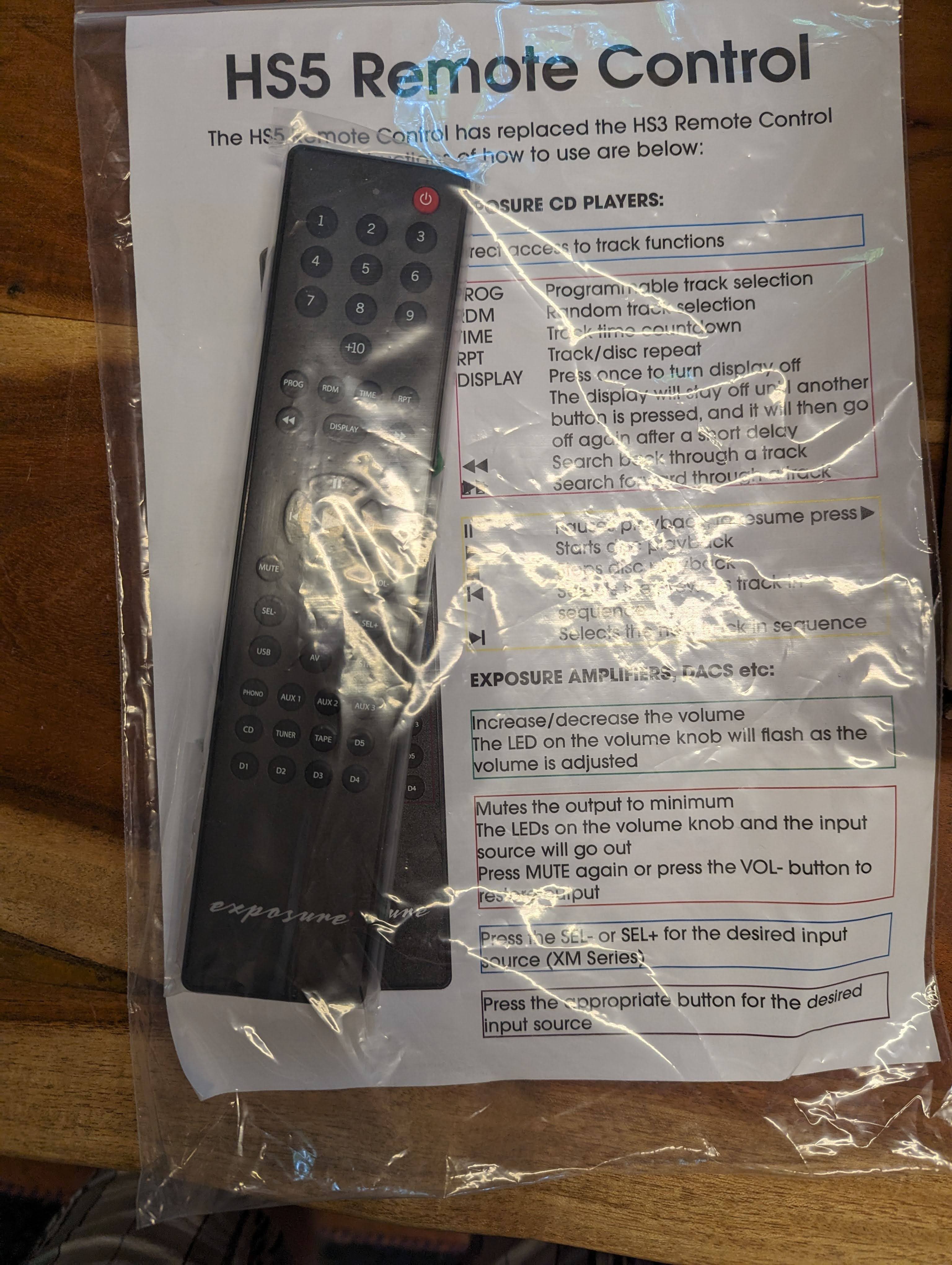

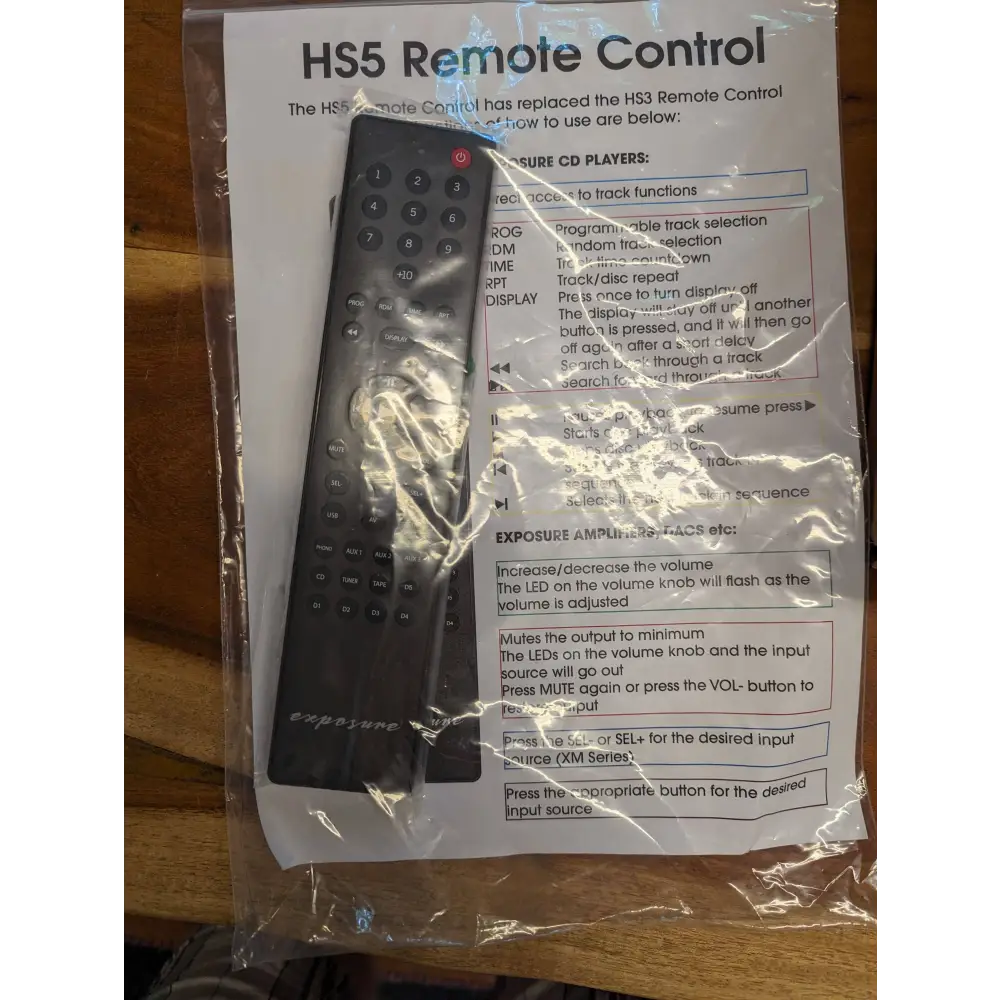

Mit der neuen großen Fernbedienung !
Performance on a higher level
Our 2510 Integrated Amplifier offers an impressive 75W of amplification for class-leading sound accuracy. Fully featured with all the latest cutting-edge technology, the 2510 will guarantee a musical performance you will want to repeat.
2510 Integrated Amplifier:
- 75W RMS per channel into 8 Ohms
- Five line inputs
- MM phono stage fitted as standard
- Separate pre-amp output
- High quality capacitors used in the signal path
- Uniquely tuned short signal and power supply path PCB
- Cascode circuitry utilised for improved power supply immunity
- Remote control
Speaker Output
Power Output (1kHz) :
Total Harmonic Distortion :
Frequency Response :
Signal to Noise Ratio :
Channel Separation :
Pre-Amplifier
Pre-Amplifier Output :
Frequency Response :
Signal to Noise Ratio :
Channel Separation @ 20kHz :
Inputs
AV Input Fixed Level :
AUX 1 Phono Input MM :
LINE Inputs (Except AV) :
General
Mains Supply :
Fuse :
Power Consumption :
Dimensions (HxWxD) :
Net Weight :
Gross Weight :
75W per channel into 8 Ohms
<0.015% at 1kHz, rated power
20Hz to 20kHz +/-0.5dB
ref 1kHz & 75W output : >100dB, A weighted
>60dB @ 1kHz LINE input open (shorted >80dB)
>40dB @ 20kHz LINE input open (shorted >60dB)
+12dB ref LINE input
20Hz to 20kHz +/-0.5dB
ref 1kHz & 1V output : >100dB, A weighted
>60dB input shorted
>40dB input open AUX2 input
850mV @ 1kHz, 10K Ohms, S/N >100dB
2.5mV @ 1kHz, 47K Ohms, S/N >72dB
350mV @ 1kHz, >14K Ohms, S/N >100dB
110/120V or 220/240V @ 50/60Hz (factory set)
T5AL for 110/120V units
T2.5AL for 220/240V units
<200W
90mm x 440mm x 300mm (inc knob)
6kg
8kg
Features
• 75W RMS per channel into 8 Ohms
• Five line inputs
• MM phono stage fitted as standard
• Separate pre-amp output
• High quality capacitors used in the signal path
• Uniquely tuned short signal and power supply
path PCB
• Cascode circuitry utilised for improved power
supply immunity
• Fast bipolar transistor output stage for
dynamic and vivid performance
• All aluminium casework and extruded front
panel to control resonance and stray electromagnetic fields
• Remote control
• Three year guarantee
• Available in black or titanium
