Beschreibung
Zitate Luxman:
LUXMAN Vollverstärker sind Legenden.
Sie lassen Musik leben, sie lassen Trommeln wirbeln und Becken sanft ausschwingen. Sie lassen Bruce rocken und Oscar zart seinen Bass zupfen.
Sie verleihen Stimmen das richtige Timbre. Sie wecken Emotionen, sie bringen nie gehörte Details zum Vorschein.
Sie lassen uns in Musik schwelgen, schenken uns Stunden wunderbarer Entspannung.
Man muß sie gehört haben um zu verstehen…
The attraction of the L-505uXII is its new level of refinement, approaching perfection as an authentically desirable product
The L-505uXII is the eagerly awaited Mark II version of the popular L-505uX that has been at the forefront of pre-amplifier design since it's launch in 2011. Incorporating an abundance of proprietary technologies, such as Luxman's Version 4.0 ODNF (Only Distortion Negative Feedback), as well as LECUA (Luxman Electronically Controlled Ultimate Attenuator), this product is a truly multifunctional integrated amplifier.
As Luxman's latest high-end model, the L-505uXII continues the evolution of the L-505 series, which has attracted many fans of audio quality and earned a great reputation. As an amplifier which exudes sophistication and authenticity beyond its class, the L-505uXII represents the latest in a long line of exemplary models.
ODNF* Version 4.0 - Innovative amplification feedback circuit
An integral part of the design of the L-505uXII is LUXMAN's original ODNF amplification feedback circuit featuring a high-speed primary slew rate, an ultra-wide bandwidth and a low level of distortion that is achieved by feeding back only the distorted components of the audio from the amplifier's output circuit.
The L-505uXII is equipped with the latest Version 4.0 ODNF circuit, resulting in a dramatically enhanced accuracy in distortion detection due to the paralleled first stage and Darlington equipped second stage amplification circuit, as well as a paralleled first stage error detection circuit.

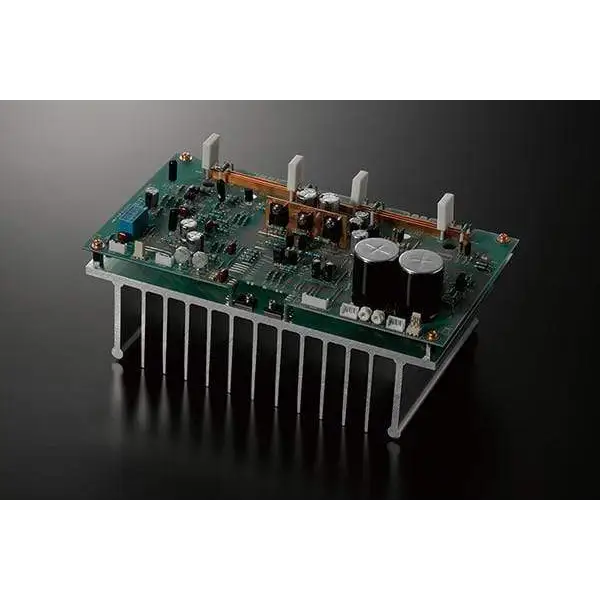

With it's lower impedance and higher S/N ratio, the L-505uXII realizes accurate reproduction of even the gentlest audio signals and achieves a full range of dynamic musical expression. The output stage, with it's parallel push-pull structure, has secured sufficient power at 100W+100W(8Ω) and 150W+150W(4Ω).
Highly accurate LECUA computerized attenuator

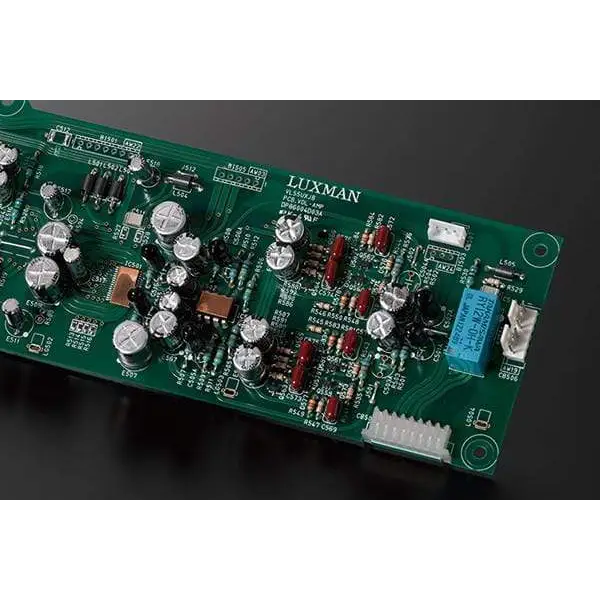

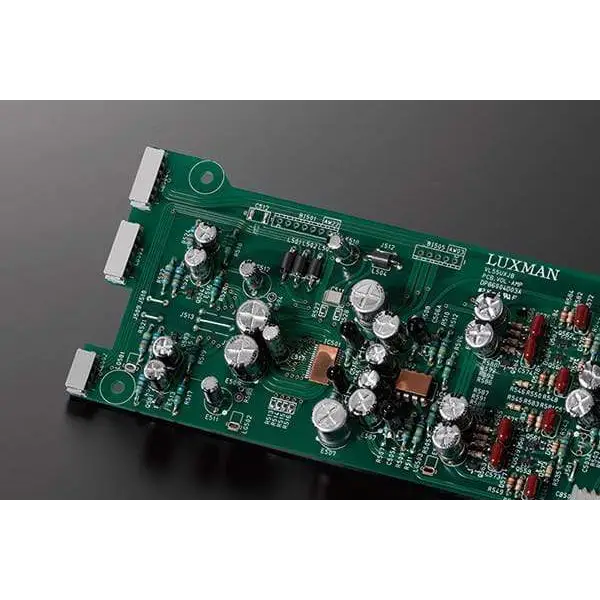

LECUA (Luxman Electronically Controlled Ultimate Attenuator) is at the heart of the pre-amplifier section and the sound volume adjustment function of the L-505uXII. The L-505uXII design also uses a solid state(IC) type circuit to achieve a significant reduction in size.
LECUA provides an ideal level control mechanism that allows smooth and fine volume adjustment over 88 steps, thereby minimizing any deterioration of the audio signal. In addition, left and right balance adjustment is integrated into the attenuator's control functions.

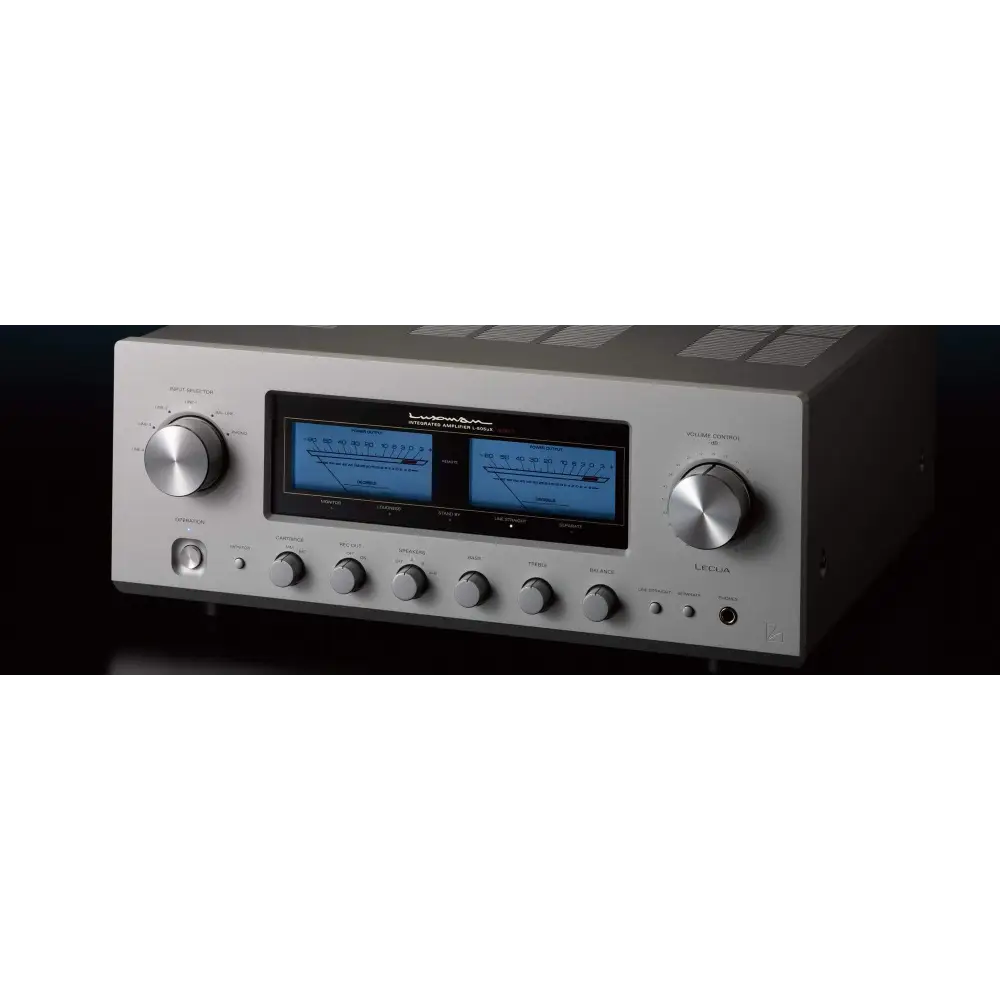

The multifunctional ability of LECUA ensures accuracy over the full range of the volume control, whilst suppressing any deterioration of sound quality. The volume may also be adjusted with the remote control, but when adjusting the volume manually, the tactile design and gradual motion of the control itself enables intuitive adjustment of the attenuation level.
Zitat STEREOPLAY:
82 von 100 Punkten
Preis/Leistung: „überragend“, „Highlight“
„Das ist ein Vollverstärker, wie er im Buche steht. Rein analog zugänglich und bestückt mit einer superben MM/MC-Phonostufe klingt er sagenhaft, vereint Stärke und Gefühl, Tempo und Schmelz, softet nicht ab, bleibt aber auch bei mörderischen Pegeln stressfrei und souverän. Ein Volltreffer!“
| Rated output | 100W + 100W (8Ω), 150W + 150W (4Ω) |
|---|---|
| Input sensitivity/input impedance | PHONO (MM): 2.5mV/47kΩ PHONO (MC): 0.3mV/100Ω LINE: 180mV/47kΩ BAL.LINE: 180mV/55kΩ MAIN-IN: 1V/47kΩ |
| Output voltage | REC OUT: 180mV, PRE-OUT: 1V |
| Frequency response | PHONO: 20Hz to 20kHz (within -3dB) LINE: 20Hz to 100kHz (within -3dB) |
| Total harmonic distortion | 0.009% or less (8Ω, 1kHz) 0.09% or less (8Ω, 20Hz to 20kHz) |
| S/N ratio (IHF-A) | PHONO (MM): 91dB or more PHONO (MC): 75dB or more LINE: 104dB or more |
| Volume adjustment | LECUA |
| Amplification circuit | ODNF 4.0 |
| Output configuration | Bipolar parallel push-pull |
|---|---|
| Damping factor | 210 |
| Max. amount of tone control | BASS: ±8dB at 100Hz TREBLE: ±8dB at 10kHz |
| Power supply | 230V~(50Hz) / 115V~(60Hz) |
| Power consumption | 270W 85W (under no signal), 0.4W (at standby) |
| External dimensions | 440(W) x 178(H) x 454(D) mm front side knob of 20mm and rear side terminal of 27mm included in depth |
| Net weight | 22.5kg (main unit) |

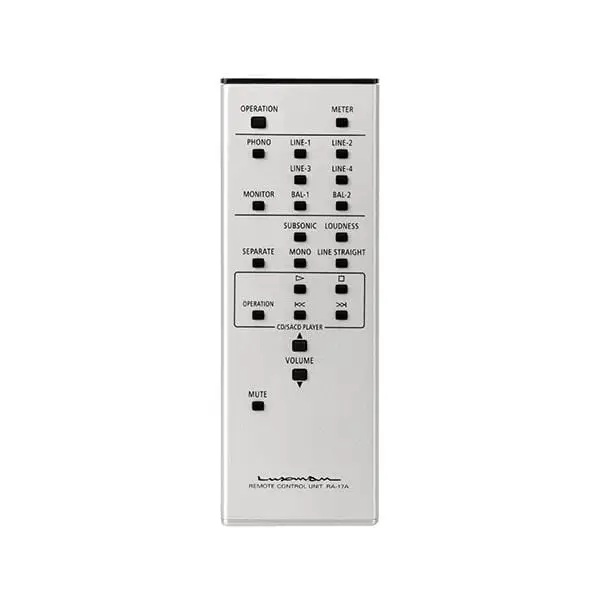

| Accessories | Remote control (RA-17A) Power cable |

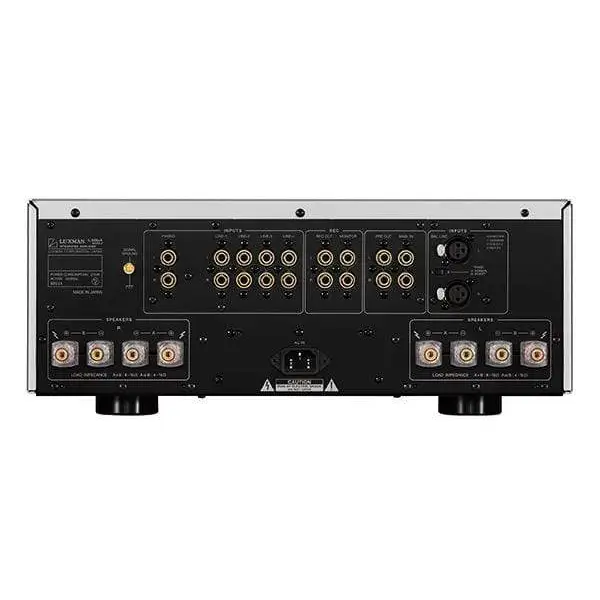

| Speaker terminal Supported Y-lug terminal dimension | Width of part a: 15mm or less Width of part b: 8mm or more * Connection may not be performed depending on the shape of the Y-lug terminal. |
