Class A Röhrenendstufe, Röhren in Triodenbetrieb !
A vacuum tube power amplifier with ambition

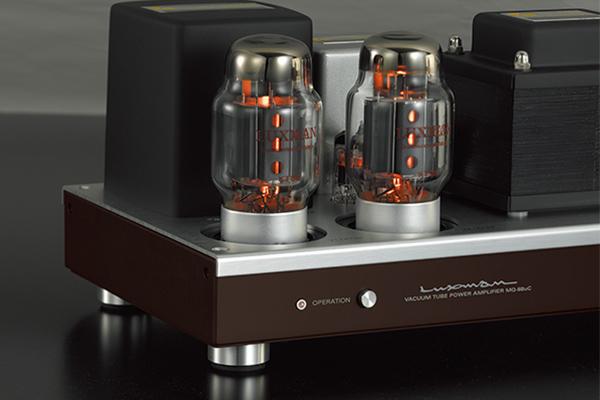

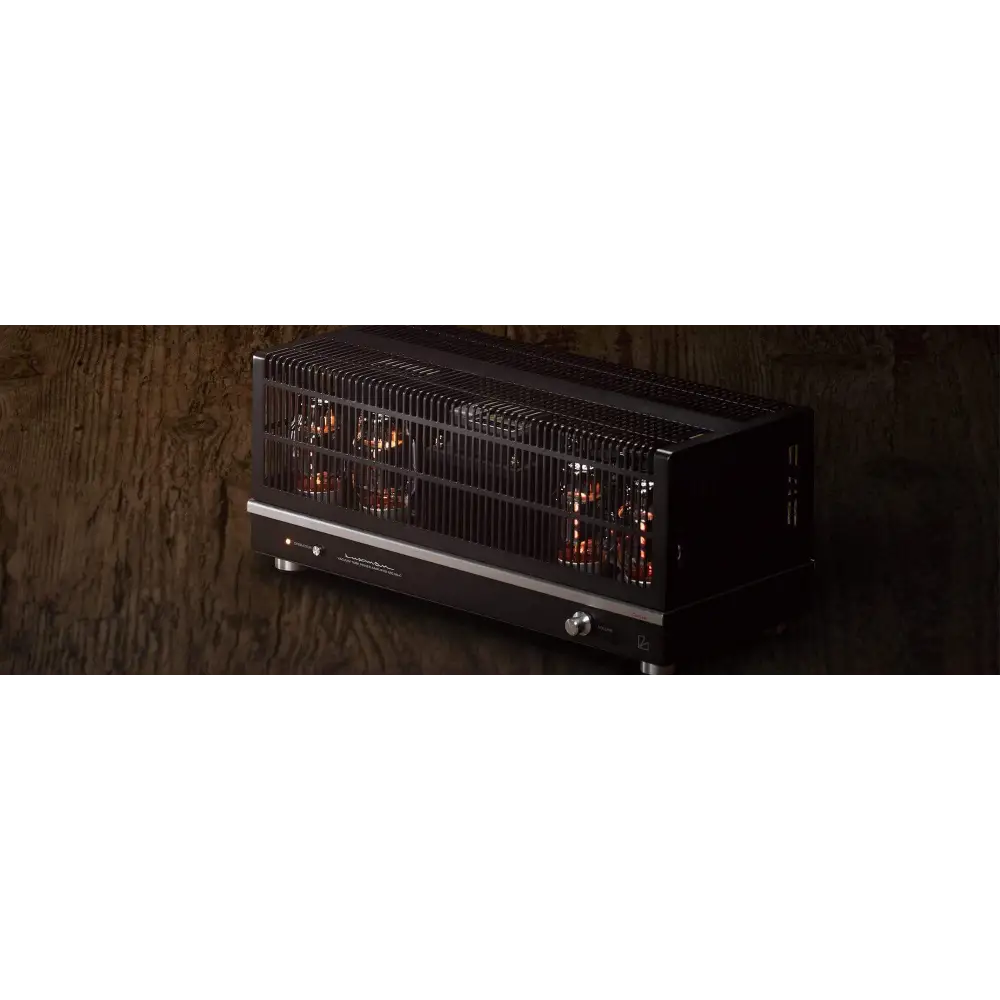

The MQ-88uC has an elegant dark brown finish, realizing a modern classical appearance reminiscent of our finest legacy products.
This model’s improved clarity and warm, accurate audio reproduction, unique to vacuum tube products, and the quality of the components and engineering shine through. We strongly feel that the introduction of new technology and added customization will prove integral to this model’s appeal as a modern day vacuum tube amplifier.
LUXMAN's vacuum tube amplifier legacy
Since the launch of our SQ-5A vacuum tube integrated amplifier in 1961, we have continued making vacuum tube amps without a break. We have produced many models that are highly valued as signature models and satisfied music lovers are enjoying them to this day, even several decades after their release. The CL-38uC and MQ-88uC combine LUXMAN's history of producing fine vacuum tube products and the traditional wisdom and skills gained along the way.
The essence of high-end products:
selected high quality components

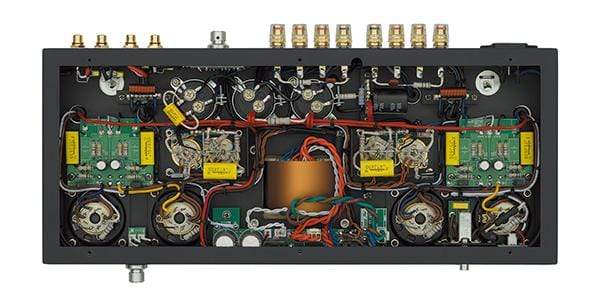

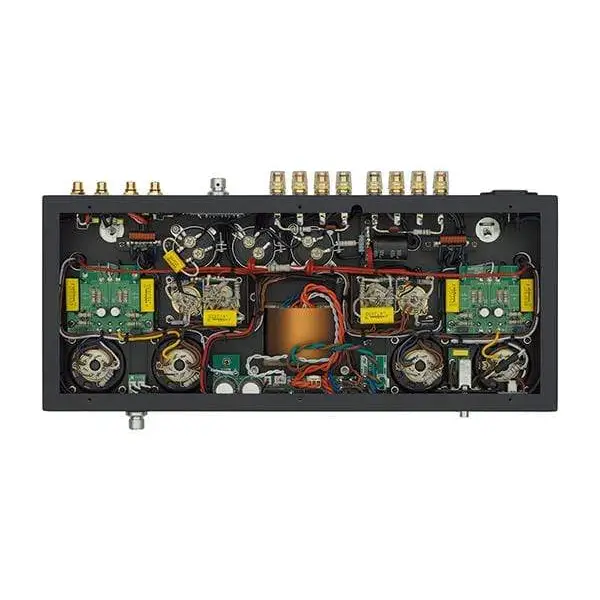

Due to their relatively simple circuitry, vacuum tube amplifiers are greatly affected by the quality of individual components, hence we utilize LUXMAN's own high-quality transformers and blocking capacitors. Further customization comes in the form of Nichicon made, high voltage, metalized polypropylene film coupling capacitors, which have been introduced for their supple, natural tone. Improved audio quality has been realized by shortening the internal wiring.

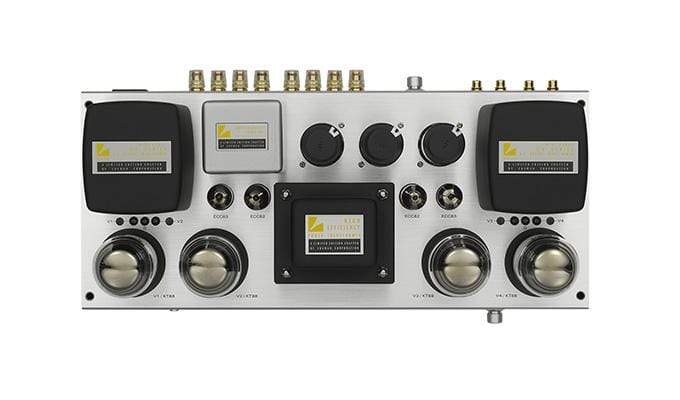

Output transformers and power supply

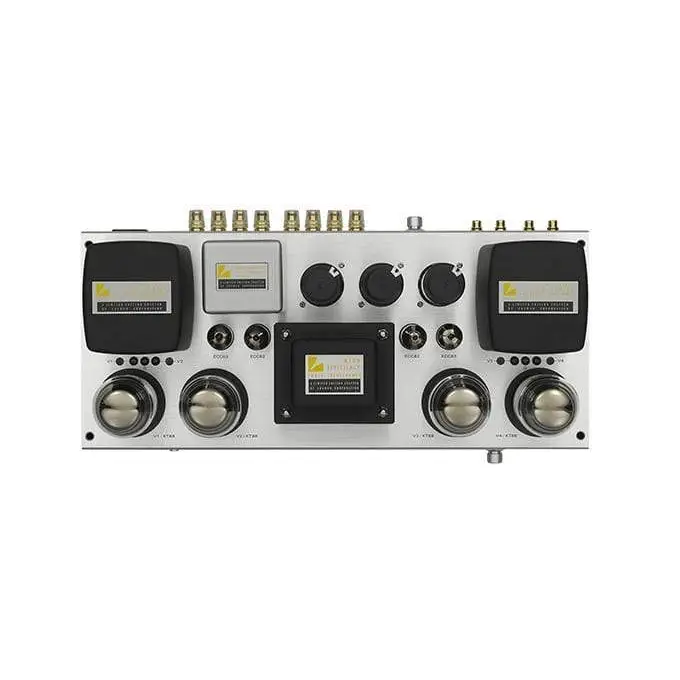

Output transformers play an important role in determining the sound quality and performance of a vacuum tube amp. LUXMAN’s classic amplifier products featured OY15 type output transformers with die-cast aluminum housings.
These have been redesigned and reproduced with the original shape. The power supply section features a highly stable El type power transformer in tandem with custom designed blocking capacitors yielding steadfast sound quality and excellent drivability.
Reviving designs from the golden era of vacuum tube amplifiers

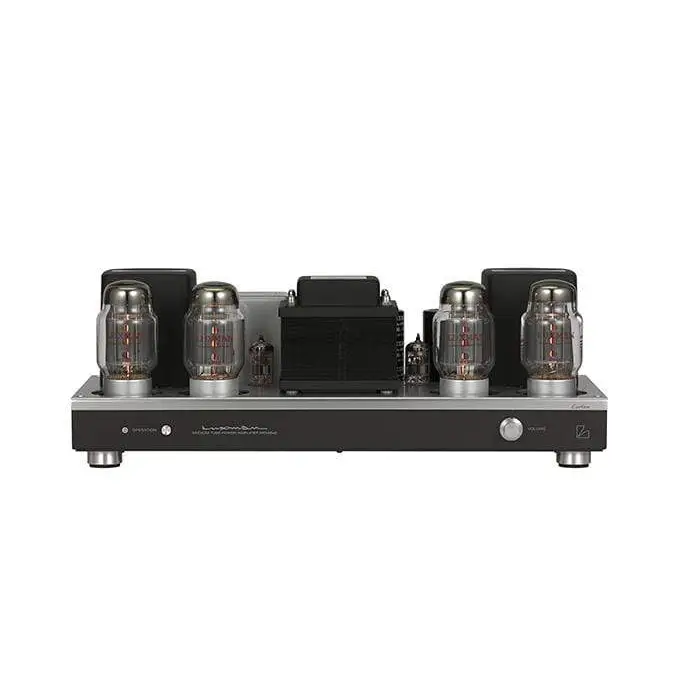

The CL-38uC control amplifier and the MQ-88uC power amplifier are based on the latest technology and design, but the exterior styling evokes a classic image from the heyday of vacuum tube audio products.
The CL-38uC is modeled on the CL-35, released in 1970, and the MQ-88uC is modeled on the MQ-60, released in 1969. A classic front panel design should be functional, but also beautiful, achieved by careful selection of knobs and lever switches.
Listeners can appreciate such traditional design features, with their nostalgic flavor, whilst enjoying these contemporary, high performance audio products.
Long life and reliable design
Each CL-38uC control amplifier and MQ-88uC power amplifier undergoes a final performance check after a 48 hour aging process following assembly.
|Rated output||25W + 25W (4Ω, 8Ω, 16Ω)|
|Input sensitivity / impedance||890mV / 32kΩ|
|Total harmonic distortion||0.1% (1kHz 1W), 0.5% (20Hz to 20kHz 1W)|
|Frequency response||20Hz to 20kHz (+O, -0.2dB)
10Hz to 100kHz (+O, -3dB)
|Power consumption||170W, 140W(no signal)|
|Dimensions||440 (W) x 184 (H) x 230 (D) mm|
