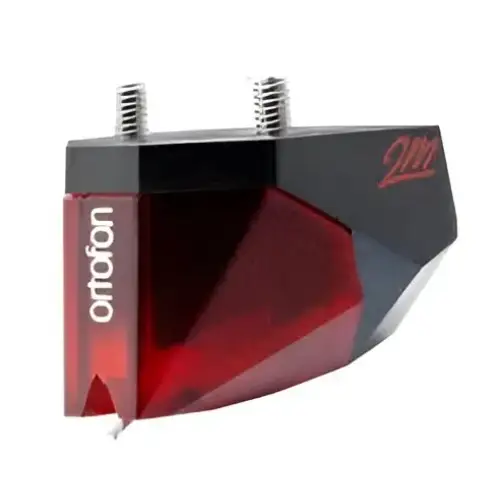

Ortofon 2M red MM Tonabnehmer Bulk Version

Ortofon


€99.00 €110.00


Klicken Sie hier, wenn Sie informiert werden möchten, sobald dieser Artikel verfügbar ist.



Test. Stereoplay sehr gut. Audio sehr gut. Tonbnehmer sind neu,

aber ohne OVP ! (Waren auf Neugerät montiert, aber garantiert nicht gespielt)

Inspiriert durch die Hochtechnologie und des großen Erfolges der
Serie RONDO, spezifizierten und konstruierten die Ortofon
Designer die MM-Serie 2M.
Markant und bestechend überzeugt das moderne Design durch
geradlinige Formen und für die Justage so wichtigen
Grundstrukturen.
Die so wichtige Funktion der Magneteinheit wurde weiter
verbessert um unnötige Störeinflüsse durch auftretende
Wirbelströme zu verhindern, was das unterschwellige
Grundrauschen erheblich mindert. Gleichzeitig sorgt durch die
neue 2M Serie eine höhere Ausgangsspannung für problemlose
Kombinationsmöglichkeiten mit unterschiedlichen
Phonovorstufen.
Als absolute Priorität der neuen Ortofon - Technologie steht die
Natürlichkeit an erster Stelle.

 2M Red Technical data

Output voltage at 1000 Hz, 5cm/sec.  -  5,5 mV
Channel balance at 1 kHz   -  1,5 dB
Channel separation at 1 kHz  -  22 dB
Channel separation at 15 kHz  -  15 dB
Frequency range at - 3dB  -  20-22.000 Hz
Frequency response  -  20-20.000 Hz + 3 / - 1 dB
Tracking ability at 315Hz at recommended tracking force  -  70 µm
Compliance, dynamic, lateral  -  20 µm/mN
Stylus type  -  Elliptical
Stylus tip radius  -  r/R 8/18 µm
Tracking force range  -  1,6-2,0g (16-20 mN)
Tracking force, recommended  - 1,8 g (18 mN)
Tracking angle  -  20°

Internal impedance, DC resistance  -  1,3 kOhm
Internal inductance  -  700 mH
Recommended load resistance  -  47 kOhm
Recommended load capacitance  -  150-300 pF
Cartridge colour, body/stylus  -  Black/Red
Cartridge weight  -  7,2 g
Replacement stylus unit  -  2M Red (interchangeable with 2M Blue and 2M Silver)

Download the 2M series userguide

Download the 2M series brochure

Ortofon ist ein in der dänischen Stadt Nakskov ansässiger Hersteller für Audio-Zubehör. Die Produktpalette umfasst Tonabnehmer, Tonarme und Zubehör für die Schallplattenwiedergabe wie Vorverstärker, ... Wikipedia



 Bulk Version ohne teure Verpackung !  Beschreibung und Schrauben werden mitgeliefert !

 Review quote 2M Red

Hi-Fi News October 2008
Reviewed by Steve Harris and Paul Miller

"...a pleasing ambience...
...intimate, trembling quality...
...bass in proportion...
...good detail...
...realistic without going into hardness...
...sense of space even in the climaxes..."



...The 2M line has become a de facto reference for moving-magnet cartridges...it is due to both the sound quality of the various 2M models as well as the wide price range across the line... The differences among the four stereo 2M models occur in three primary areas: stylus profile, body material, and engine ...
... The 2M Black is "open, fast, detailed, vivid, full of vitality and sonically spectacular." It is a true high-resolution transducer that consequently puts great demands on the downstream electronics and speakers...
...On the other end, the 2M Red is far more forgiving than the 2M Black, but also less involving, at least in the context of my system (the turntable is a Technics SP-15 with an Audio-Technica ATP-12T tonearm, both in a Technics SH-15B2 base - red.)...
...with the 2M Blue ...you get the audiophile treatment: a full-range, highly resolving presentation that sounds neither stiff nor unforgiving. In fact, the 2M Blue's balance, both tonally and in terms of overall resolution, may be its greatest feat. It's an easy cartridge to listen to, and even novice listeners...
...While the 2M Black sounds more immediately impressive, the 2M Bronze is the more satisfying over the long haul, halving the difference between the Black's speed and resolution and the Blue's balance. In fact... it is a mixture of all of these sonic virtues. It's fast, but not ostentatiously so; it turns information into music, and it does this because it is better balanced, neither leaning in one sonic direction or another. I would say that it represents not just the 2M line's sweet spot but also its musical core. ..."
