PSVANE ACME v274B Pair


Preis:
Sonderpreis€ 690,00

GPSR Information

Allgemeine Informationen

CE-Kennzeichnung: Ja

Beschreibung

Unsere Favoriten der Gleichrichterröhren, kompatibel auch fast immer mit

der 5u4G und GZ34 !

Fast sop gut wie die originale inzwischen fast unbezahlbare Western Elecgtric 274b aus den 30er Jahren:

Die Röhren werden getestet und tachyionisiert. Paarpreis

Produktinformationen "Psvane ACME 274B"

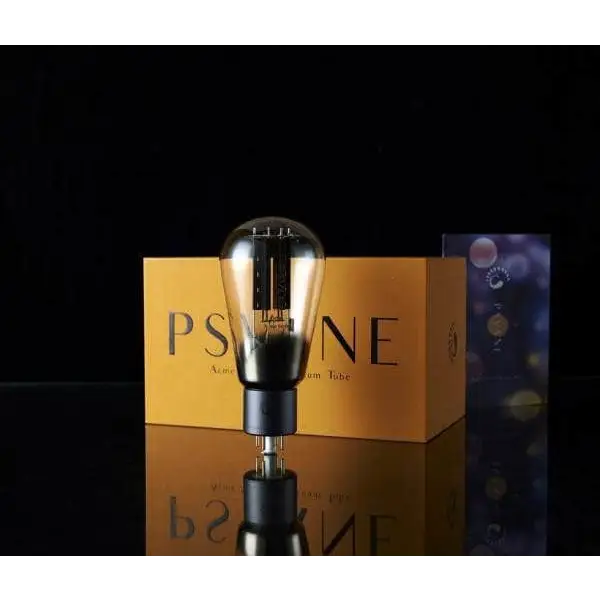

Die klassiche Gleichrichterröhren im neuen Design:  die ACME 274B


PSVANE hebt diese Design-Details als absout einzigartig hervor:

  • 5+ years of R&D poured in to create this Supreme series and world's first 3D designed tube structure
  • Patented hybrid plate design - combination of graphite and mesh material first time used at the same time on high power output tubes (845, 211, 805) to achieve synchronized expansion even at 600 Celsius temperature, high emission capacity, and super stability.
  • Overhang filament structure on 300B, 274B, 2A3 model to achieve very airy and high resolution sound reproduction. Vintage style globe shape glass enclosure on these models.
  • 5cm diameter larger glass enclosure on 845/211/805 than regular series to allow quick heat dissipation and enhanced stability
  • Teflon base with sand blasted aluminum cover - no finger print residual!
  • German solder used in pin connection and of course, gold plated!




SPECIFICATIONS

ACME 274B, direkt beheizte Kathode, 2-Wege-Gleichrichter,274B ist ähnlich der 5U4G und 5Z3P, kann in den meisten Applikationen auch für eine GZ34 eingesetzt werden

Heater
Uf………………5V
If……………… 2.5A

Maximum Rating
anode inverse peak voltage      1550V
anode peak current             750mA

Recommend operating condition
Anode supply voltage       2×500V
Each arm impedance                 75Ω
load impedance                    2000Ω
Filter capacitor                           4μF
Rectifier current                      ≧220mA

Maße:  d = 53mm max.,  h = 126mm max.,  mit Anschlüsse 140mm max.
