Verbessern Sie Ihren Klang:
#Supra spent over five years in research and development for the new LoRad shielded mains cable, which has now been superceded by the Mark 11 version.
.
The benefits of LoRad have been established for some time now - as the cable is one of the few available worldwide that is fully CE approved. The main benefit is the shielding which helps to ensure that other low level signal cables are not affected by the close proximity of the LoRad mains cable - induced RF interference has been one of the biggest bug-bears of high quality audio and video reproduction and so by equipping one's hi-fi or AV system with LoRad, you should both see and hear a difference.
LoRad is a CE-approved audio grade replacement mains cable and it is available for home DIY'ers to terminate with their own choice of mains connectors such as MK Toughplug, Schuko and IEC320 connectors.

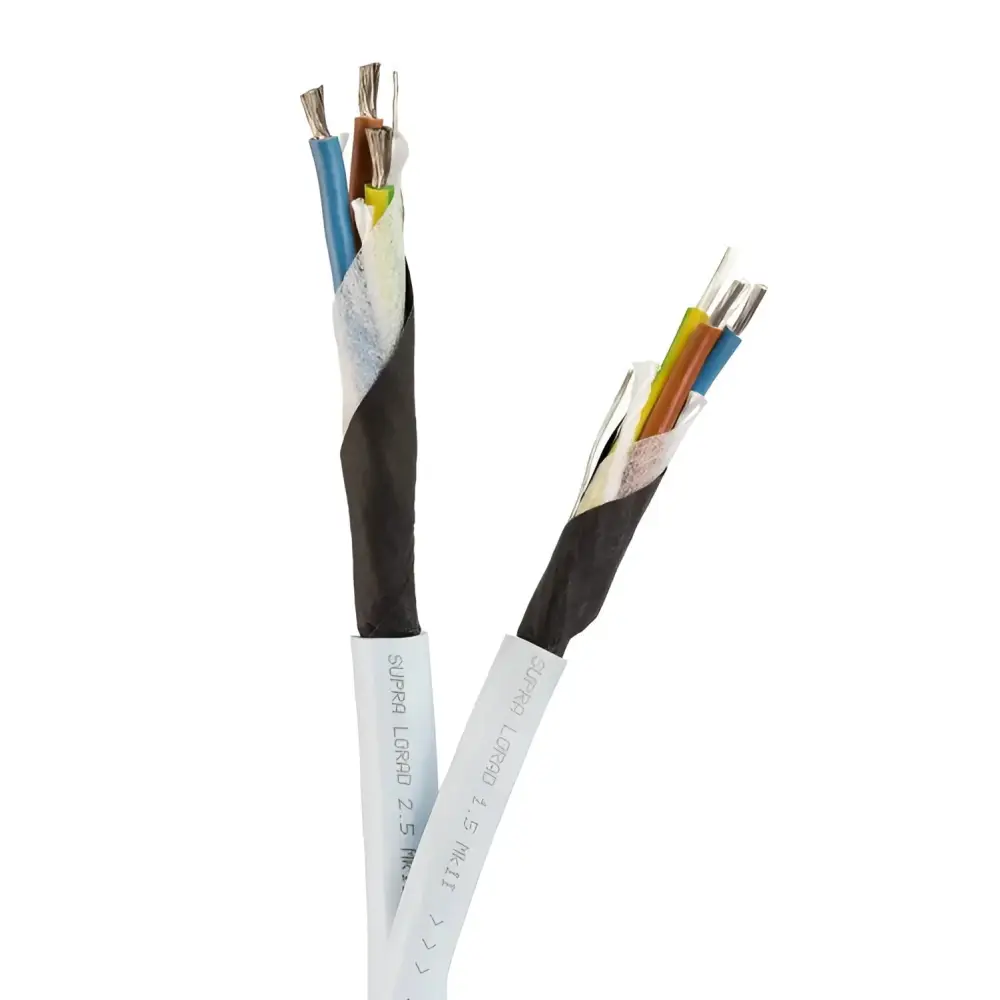

Basic technical specifications:
Mechanical data
| Standard | Mains power flex with ground lead and high-end shield | |
| Leads | 3 x 1.5mm2, tin plated 5N oxygen-free copper | |
| Number of strands | 204 | pieces |
| Strand dimension | Ø 0.10 | mm |
| Di-electric (insulation) | Dual layer PVC. Lead identification; green/yellow, blue & brown. | |
| Number of fillers/armoring | Yarn, 3 | pieces |
| Shield interconnection to ground | Drain wire, ultra flexible, tin plated, 66 strands x Ø 0.07 mm OFC. | |
| Armoring and insulation | Woven polyester tape | |
| Shield | Woven semi-conductive Carbon/Nolyn tape | |
| Jacket | Age and heat resistant PVC | |
| Outer dimension | Ø 9.2 | mm |
| Resistance / conductor | 10.8 | Ohm / km |
| Nominal voltage | 110 - 250 | Volts |
| Maximal continuous current | 10 | Ampere |
The LORAD can be used for wiring a "spur" from your consumer unit - the box "under the stairs" with all your fuses or RCB inside ! Read here the tips from one consumer on how he did this. (Electrical knowledge required)
